Electronic Component

• Application
• Switch mode power supplies, snubber circuits, freewheeling diodes, high-frequency rectification

• Color
• Black body, silver leads

• Components
• Semiconductor diode

• Current Rating
• 1 A continuous forward current

• Dimension (L*W*H)
• Approx. 5.2 mm x 2.4 mm (body) excluding leads

• Features
• Ultra-fast reverse recovery, low forward voltage, high reliability

• Frequency
• Operation up to several hundred kHz

• Function
• Rectification and switching

• Input
• AC or DC depending on circuit requirement

• Interface
• Axial leads

• Operating Temperature
• -65C to +150C

• Output
• Rectified DC or clamped voltage

• Power Source
• Connected inline within circuit; passive; powered by circuit voltage

• Power Supply
• Not applicable (passive device)

• Product Type
• Ultra Fast Diode

• Rated Voltage
• 600 V

• Response Time
• Typical reverse recovery time: 75 ns

• Size
• DO-41 Package

• Supply Voltage
• Operation up to rated voltage (600 V)

• Thermal Conductivity
• Standard for DO-41 epoxy case

• Thickness
• Standard DO-41 case

• Usage
• High speed switching in power supplies, inverters, and other electronic circuits

• Weight
• Approx. 1g (per diode)

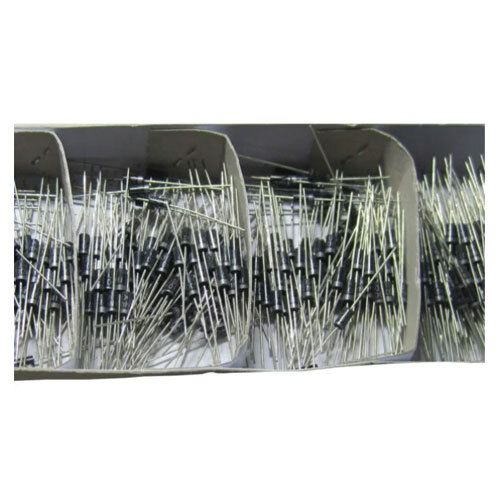

• Application
• Power electronics, industrial controls, consumer electronics.

• Capacity
• 1A to 6A (varies by model).

• Charging Voltage
• Not applicable.

• Color
• Black body with silver terminals.

• Components
• Semiconductor silicon chip in glass/epoxy package.

• Current Rating
• Typical 1A to 6A

• Dimension (L*W*H)
• 5.2mm x 2.7mm x 2.5mm for SMD, 5-7mm length for axial package.

• Display Type
• Other, Not applicable.

• Features
• Low reverse recovery time, high surge current capability, compact design, reliable performance.

• Frequency
• High-frequency switching up to 100kHz.

• Function
• Enables rapid switching in rectification and power conversion circuits.

• IP Rating
• Not rated (for electronic component use).

• Input
• Current input dependent on circuit requirements.

• Interface
• Through-hole or SMD.

• Operating Temperature
• -55C to +150C

• Output
• Fast rectified current output.

• Power Source
• External circuit power supply.

• Power Supply
• DC

• Processor Speed
• Not applicable.

• Product Type
• Fast Recovery Diode

• Rated Voltage
• 400V

• Resolution
• Not applicable.

• Response Time
• Reverse recovery time typically <200ns.

• Sensors Specification
• Not applicable.

• Size
• DO-15, DO-201, or SMD (varies by model).

• Supply Voltage
• DC up to 400V

• Thermal Conductivity
• Low (integrated heat dissipation required).

• Thickness
• Standard SMD case approx. 2.5mm or axial lead glass package.

• Usage
• Switching mode power supplies, inverters, free-wheeling, and snubber circuits.

• Weight
• Approx. 1.2g each (varies with package type).

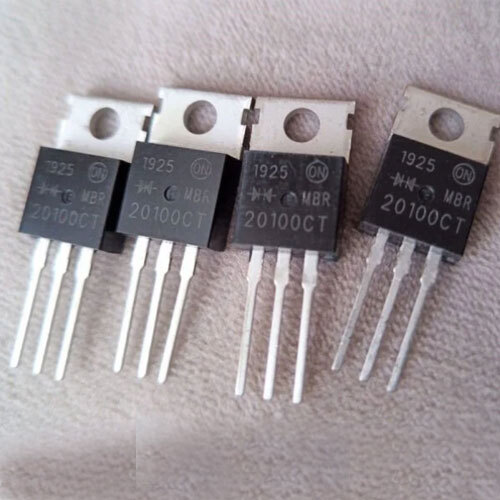

• Application
• SMPS, reverse polarity protection, voltage clamping, freewheeling diodes, solar chargers

• Color
• Black (body), Silver (leads)

• Components
• Semiconductor (Schottky barrier metal, silicon substrate)

• Current Rating
• 1A to 3A (package/model dependent)

• Dimension (L*W*H)
• (depends on package) DO-41: 5.2mm x 2.7mm x 2.7mm

• Features
• Low forward voltage drop, fast recovery time, low power loss, surface mount and through-hole packages

• Frequency
• High frequency operations up to several MHz

• Function
• High-speed switch, blocking of reverse voltage, and low forward voltage drop rectification

• IP Rating
• Not rated (not for wet environments)

• Input
• AC or DC (depending on circuit application)

• Interface
• Axial leads / surface mount

• Operating Temperature
• -55C to +125C

• Output
• DC rectified signal

• Power Source
• External circuit power supply

• Power Supply
• DC

• Product Type
• Schottky Rectifier Diode

• Rated Voltage
• up to 100V (varies per model)

• Response Time
• Fast switching (<100ns)

• Size
• DO-41, DO-201AD, SMA, SMB, SMC (package options)

• Supply Voltage
• typically 20V to 100V (model specific)

• Thermal Conductivity
• High compared to standard diodes

• Thickness
• Approx. 1.5 mm to 3 mm (package dependent)

• Usage
• Power supply circuits, voltage clamping, protection diodes, high-frequency circuits

• Weight
• Approx. 0.2 g (per piece, package dependent)

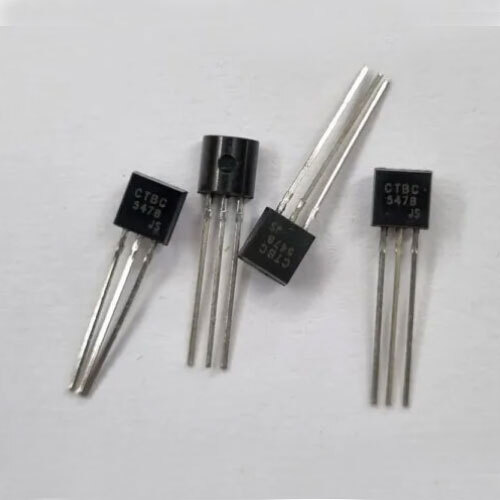

• Application
• Power and signal amplification, switching circuits

• Capacity
• Collector current up to 800mA (Typical for small signal transistor)

• Color
• Black / Variants depend on manufacturer

• Components
• Semiconductor silicon, plastic package

• Current Rating
• Max. Collector Current: 800mA

• Dimension (L*W*H)
• ~5.2 x 4.5 x 4.0 mm (TO-92)

• Features
• Low noise, fast switching, reliable, compact

• Frequency
• Transition frequency typically 100MHz

• Function
• Switching and amplification of electronic signals

• Input
• Base current

• Interface
• 3-Pin (Emitter, Base, Collector)

• Operating Temperature
• -55C to +150C

• Output
• Collector-emitter current

• Power Source
• DC Input through circuit

• Power Supply
• DC

• Product Type
• NPN / PNP Bipolar Junction Transistor (BJT)

• Rated Voltage
• 30V (Typical for general purpose transistors; check datasheet for specific model)

• Response Time
• Rise time typically 35ns

• Size
• Standard TO-92: 4.5mm x 4.0mm x 5.2mm

• Supply Voltage
• Up to 30V (varies by type)

• Thermal Conductivity
• Junction temperature up to 150C

• Thickness
• ~1.2mm (in TO-92 package)

• Usage
• Electronic circuits, signal modulation, power amplification

• Weight
• ~0.25g (Varies with package)

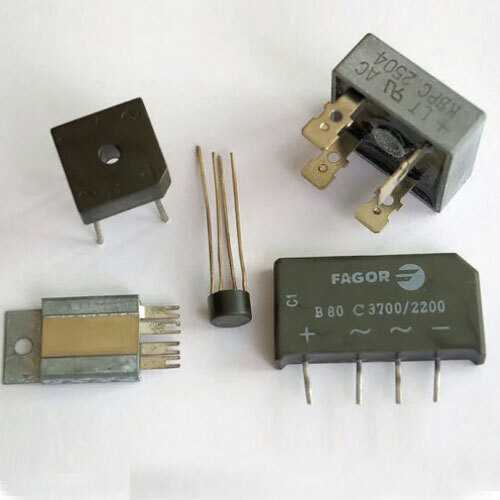

• Application
• Power Conversion, Industrial, Consumer Electronics

• Capacity
• 1A - 35A (depending on model)

• Color
• Black / Silver

• Components
• 4 Diodes (internally connected)

• Current Rating
• 1A, 2A, 5A, 10A, 25A, 35A (varies depending on product)

• Dimension (L*W*H)
• 25mm x 25mm x 8mm (approx)

• Features
• High Efficiency, Compact Size, Easy Installation, Reliable Performance

• Frequency
• 50/60Hz

• Function
• Rectification of AC to DC

• IP Rating
• IP00 (open frame), higher if cased

• Input
• AC Input

• Interface
• Wire / Lug Terminals

• Operating Temperature
• -40C to +150C

• Output
• DC Output

• Power Source
• AC Input

• Power Supply
• AC

• Product Type
• Bridge Diode / Bridge Rectifier

• Rated Voltage
• 600V

• Response Time
• Fast Switching Time

• Size
• Compact, varies by model (e.g., 25.4 x 25.4 x 8 mm)

• Supply Voltage
• Up to 600V (depends on specific model)

• Thermal Conductivity
• High, with heat dissipation body

• Thickness
• 3mm - 8mm (approx)

• Usage
• Electronic Circuits, Power Supplies, Battery Chargers

• Weight
• Approx. 5g - 12g (varies by model)
