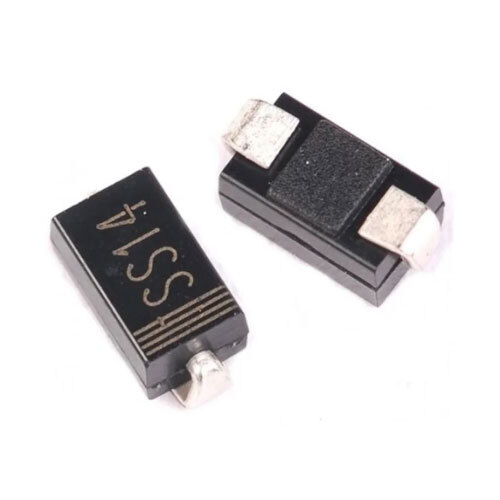

SS 14 SMD Diodes

Name: SS 14 SMD Diodes
Brand: RHYTHM SEMICONDUCTORS

Get a Price/Quote

MOQ : 1000 Pieces

SS 14 SMD Diodes Specification

Components
SS14 Diode

Features
Low Forward Voltage Drop, High Efficiency, Surface Mount Design, High Surge Capability

Usage
General Purpose, Power Conversion, Reverse Polarity Protection

Response Time
Fast Switching, <5ns

Power Supply
Not Applicable (Passive Component)

Interface
Surface Mount

Operating Temperature
-55C to +125C

Product Type
SMD Schottky Barrier Rectifier Diode

Application
SMPS, Power Supply, LED, DC to DC Converter, Automotive, Consumer Electronics

Rated Voltage
40V (Peak Repetitive Reverse Voltage)

Supply Voltage
Up to 40V

Size
SMA Package

Dimension (L*W*H)
4.5 x 2.8 x 1.9 mm

Function
Rectification, Surface Mount General Purpose Diode

Color
Black (body with white markings)

Weight
Approx. 0.05 g per piece

Current Rating
1A (Average Forward Current)

Thickness
1.9 mm (typical)

Package Type
DO-214AC (SMA)

Peak Forward Surge Current
30A (8.3ms single half sine-wave superimposed on rated load)

Reverse Leakage Current
0.5mA max (at 40V)

Mounting Type
SMD (Surface Mount Device)

Storage Temperature
-55C to +150C

RoHS Compliant
Yes

Forward Voltage Drop (Vf)
Max 0.5V @ 1A

Maximum Repetitive Peak Reverse Voltage (Vrrm)
40V

Maximum DC Blocking Voltage
40V

Polarity
Cathode marked on body

Manufacturer Series
SS14

Maximum RMS Voltage
28V

SS 14 SMD Diodes Trade Information

Minimum Order Quantity
1000 Pieces

Payment Terms
Cash in Advance (CID)

Supply Ability
10000 Pieces Per Month

Delivery Time
5-7 Days

Main Domestic Market
All India

About SS 14 SMD Diodes

SS 14 SMD Diodes are extraordinary, praiseworthy components widely sought-after for their outstanding performance in circuit designs. These in-demand diodes offer a maximum reverse leakage current of just 0.5mA at 40V and an impressive peak forward surge current of 30A, ensuring dependable, high-efficiency power conversion and reverse polarity protection. Their compact DO-214AC (SMA) package with surface mount capability makes procurement convenient for modern applications. Praised for their fast switching time and low forward voltage drop, the SS14 diodes are ideal for SMPS, LED systems, automotive, and consumer electronics-making them a preferred choice for manufacturers and suppliers across India.

Advantages & Standout Features of SS 14 SMD Diodes

Enjoy the advantage of low forward voltage drop and high surge capability with SS 14 SMD Diodes. Built with superior material quality in a black SMA package, they deliver praiseworthy thermal stability and high efficiency. Fast switching response (<5ns) ensures reliable performance in demanding conditions. Features include remarkable energy efficiency, surface mount design for straightforward placement, and clear cathode marking, making these diodes a highly sought-after solution for a variety of general-purpose electronic applications.

SS 14 SMD Diodes Packaging & Delivery Services

Our SS 14 SMD Diodes are professionally packed to guarantee secure shipping and optimal protection during transit. We offer prompt handover to top logistics providers, ensuring safe, damage-free freight transport across the vast domestic market. Typical delivery time ranges from 2 to 5 business days depending on location. Each shipment is carefully tracked, providing our customers with complete confidence and peace of mind throughout the entire delivery process.

FAQ's of SS 14 SMD Diodes:

Q: How should SS 14 SMD Diodes be mounted for optimal performance?

A: SS 14 SMD Diodes are designed for easy mounting using surface mount technology (SMD). Ensure correct polarity by aligning the cathode marking on the body during assembly to guarantee reliable operation.

Q: What are the main benefits of using SS 14 SMD Diodes in power supplies?

A: These diodes offer low forward voltage drop and high surge current capability, resulting in efficient power conversion, fast switching response, and increased reliability in SMPS and DC-DC converter applications.

Q: When is it recommended to use SS 14 SMD Diodes for reverse polarity protection?

A: SS 14 SMD Diodes are ideal for reverse polarity protection in circuits where safeguarding sensitive components from accidental current reversal is critical, such as in automotive, LED lighting, and consumer electronics.

Q: What is the recommended process for procuring SS 14 SMD Diodes from your company?

A: You can procure SS 14 SMD Diodes by contacting our sales team or ordering directly through our website. We ensure swift handover and secure freight options tailored for the Indian market.

Q: Where can SS 14 SMD Diodes typically be used?

A: These diodes are highly versatile and commonly used in SMPS, power supply units, LED drivers, DC to DC converters, automotive electronics, and a wide range of consumer devices.
