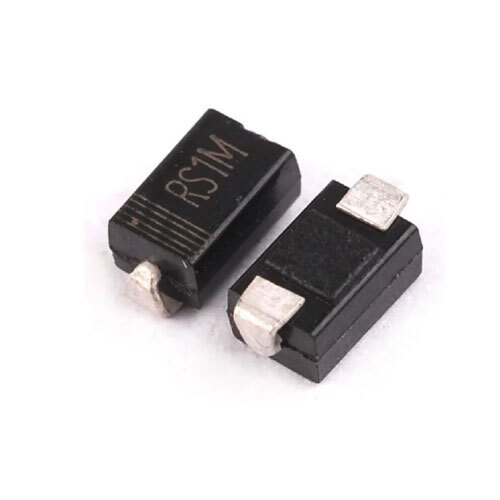

RS1M SMD Diodes

Name: RS1M SMD Diodes
Brand: RHYTHM SEMICONDUCTORS

Get a Price/Quote

MOQ : 1000 Pieces

RS1M SMD Diodes Specification

Input
AC/DC

Power Source
External Circuit / Passive

Components
Silicon PN Junction

Features
High Surge Current Capability, Lead-Free, RoHS Compliant

Operating Temperature
-55C to +150C

Output
DC

Response Time
Fast Recovery

Interface
SMD / Surface Mount

Usage
General Purpose, Rectification

Product Type
SMD Diode

Application
Switching Power Supplies, General Purpose Rectification, Inverters

Rated Voltage
1000V

Size
DO-214AC (SMA) Package

Dimension (L*W*H)
4.5 x 2.8 x 2.5 mm (approximate)

Function
Surface Mount Rectifier Diode

Color
Black

Weight
Approximately 0.05g (per unit)

Current Rating
1A Average Forward Current

Capacity
1A continuous forward current

Mounting Type
Surface Mount (SMD)

Polarity
Cathode Band Marked

Storage Temperature Range
-55C to +150C

Peak Forward Surge Current (Ifsm)
30A (8.3 ms single half sine-wave)

Forward Voltage Drop (Vf)
1.1V max at 1A

Reverse Leakage Current (Ir)
5 A max at 1000V

Maximum Reverse Recovery Time
150 ns

Package Type
DO-214AC (SMA)

Peak Repetitive Reverse Voltage (Vrrm)
1000V

RS1M SMD Diodes Trade Information

Minimum Order Quantity
1000 Pieces

Payment Terms
Cash in Advance (CID)

Supply Ability
10000 Pieces Per Month

Delivery Time
5-7 Days

Main Domestic Market
All India

About RS1M SMD Diodes

Witness a masterpiece of engineering with the RS1M SMD Diode-a splendiferous solution for rapid rectification and reliable operation. Beyond unassailable performance, this scarce component boasts a swift 150 ns reverse recovery, 1000V maximum voltage, 30A peak surge, and 1A continuous forward current, all encased in the rugged DO-214AC (SMA) package. Masterfully designed for general purpose rectification in power supplies and inverters, this black marvel is RoHS compliant and lead-free. Get it now-purchase before these high-quality surface mount rectifiers become unavailable!

Versatile Usage, Advanced Features, and Broad Applications

The RS1M SMD Diode is designed primarily for surface mount use, making it ideal for automated assembly processes in modern electronics. Featuring high surge current capability, lead-free construction, and swift recovery, these diodes perform exceptionally in input rectification, switching power supplies, and inverter circuits. Their robust design supports reliable operation across a wide temperature range, offering engineers a dependable solution for general-purpose applications demanding both performance and durability.

Main Export Markets, Packaging, and Certifications for RS1M SMD Diodes

Our RS1M SMD Diodes are shipped goods to major export markets, including Europe, North America, and Asia. Each purchase order is processed with attention to sturdy packaging-diodes are supplied in bulk, tape, or reel as per customer preference. Competitive rates are available for bulk requirements. The product carries RoHS certification and is manufactured to international standards, assuring buyers of its quality and environmental compliance.

FAQ's of RS1M SMD Diodes:

Q: How can the RS1M SMD Diode benefit my electronic designs?

A: The RS1M SMD Diode enhances designs by offering rapid recovery, high surge capacity, and reliable surface mount compatibility, making it ideal for efficient rectification and inverter circuits.

Q: What is the typical usage scenario for the RS1M SMD Diode?

A: RS1M SMD Diodes are primarily used in switching power supplies, general rectification tasks, and inverters, where reliable, high-voltage performance and fast recovery times are essential.

Q: Where can I purchase RS1M SMD Diodes, and are bulk rates available?

A: You can purchase RS1M SMD Diodes from authorized suppliers and manufacturers in India, with bulk rates offered on large purchase orders to suit commercial or industrial requirements.

Q: What process ensures the quality and compliance of these diodes?

A: Each diode is manufactured following stringent international quality standards, and is RoHS compliant and lead-free, guaranteeing both performance and environmental responsibility.

Q: When is it best to use the RS1M SMD Diode in a circuit?

A: Use the RS1M SMD Diode when you need fast reverse recovery, high repetitive reverse voltage, and the reliability of surface mount installation in demanding rectification applications.
